Specification

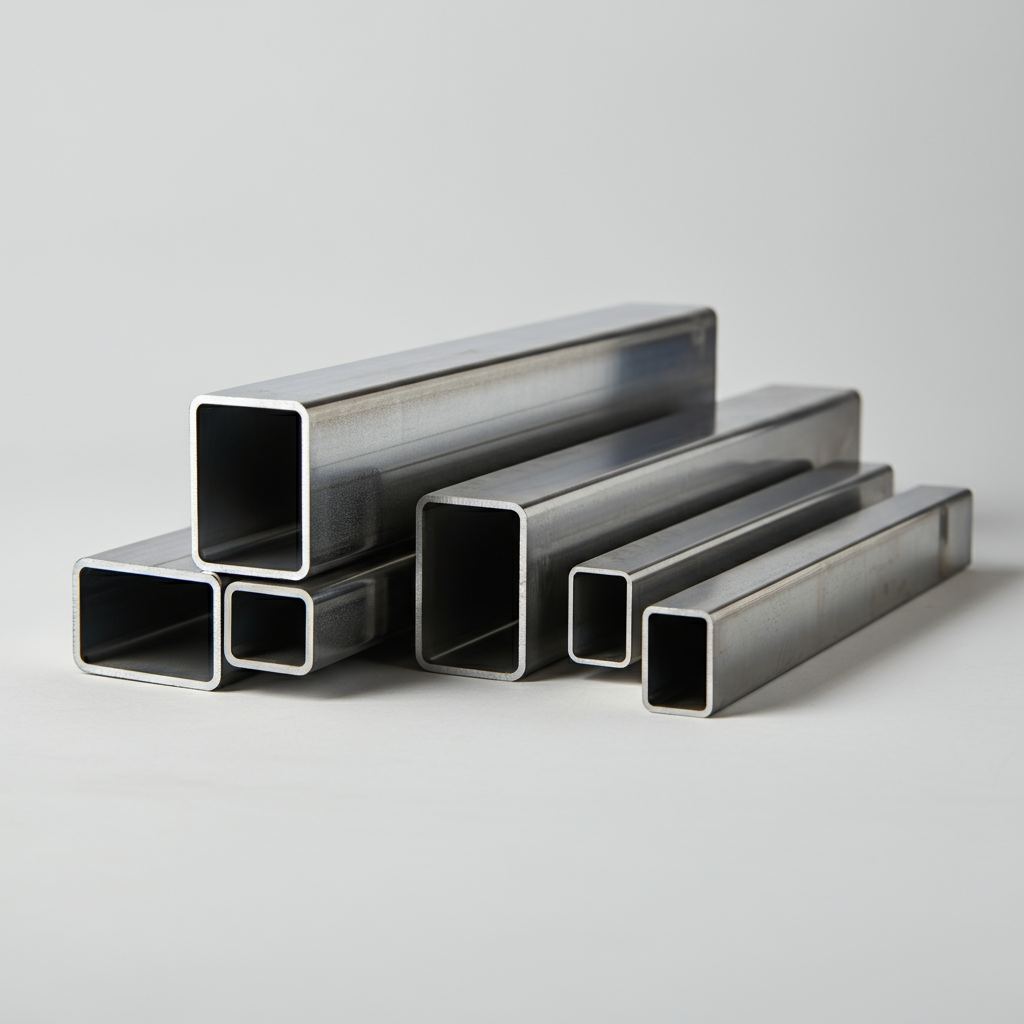

Product Name Stainless Steel Rectangular Pipe/Tube
Specifications ASTM A554 (Ornamental Tubing Specification) or ASTM A312
Type Seamless Stainless Steel Rectangular Tubes, Welded Stainless Steel Rectangular Tubing
Size 10mm x 20mm to 150mm x 300mm, other non-standard sizes available on request
Length Up to 6 meters, custom cut lengths
Thickness 0.5mm to 6mm
Finish 2B, No.1 Pickled Finish, No.4 Finish, BA Finish, No.8 Mirror Finish, Electropolished Rectangular Pipes
Our Network Mumbai, Chennai, Bangalore, Gujarat, India, Malaysia, Singapore, Saudi Arabia

Available Pipe Stainless Steel

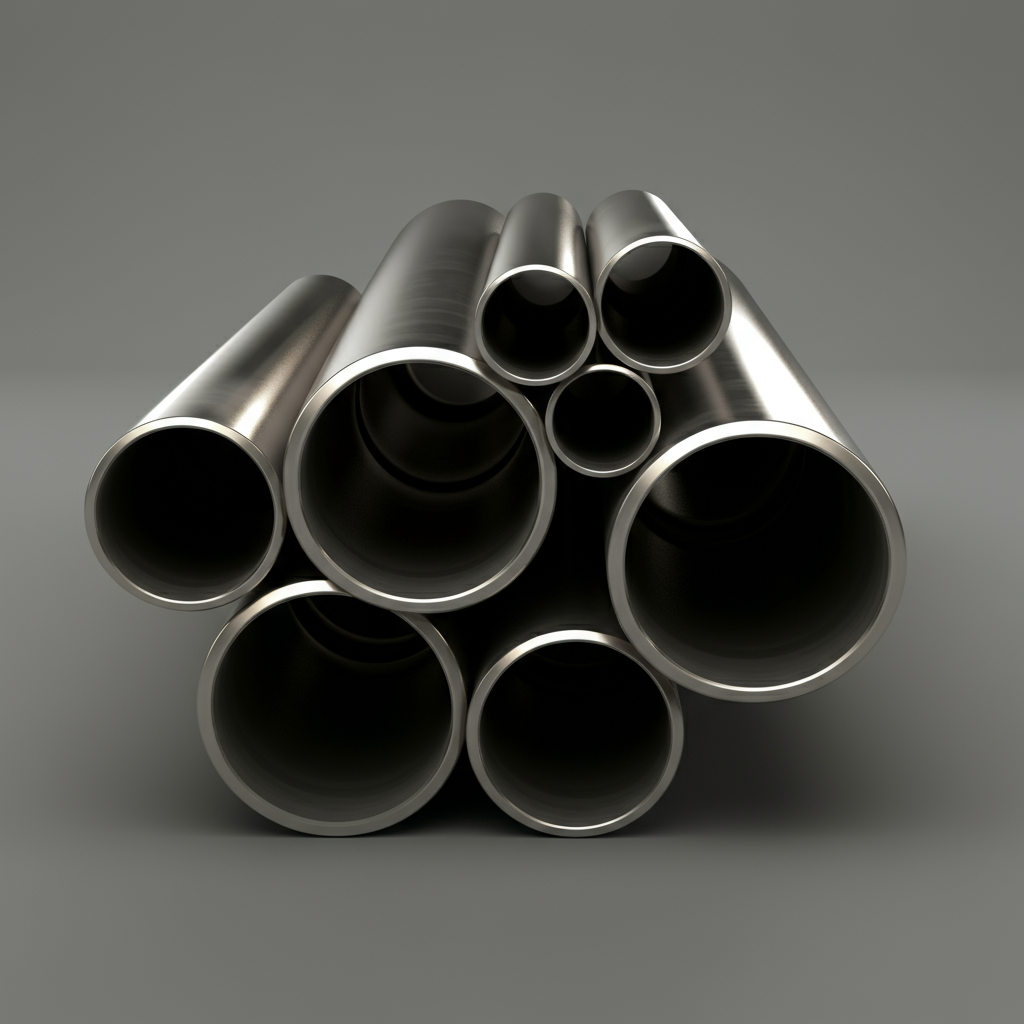

Seamless Pipes

Seamless Pipes

Welded Pipes

Welded Pipes

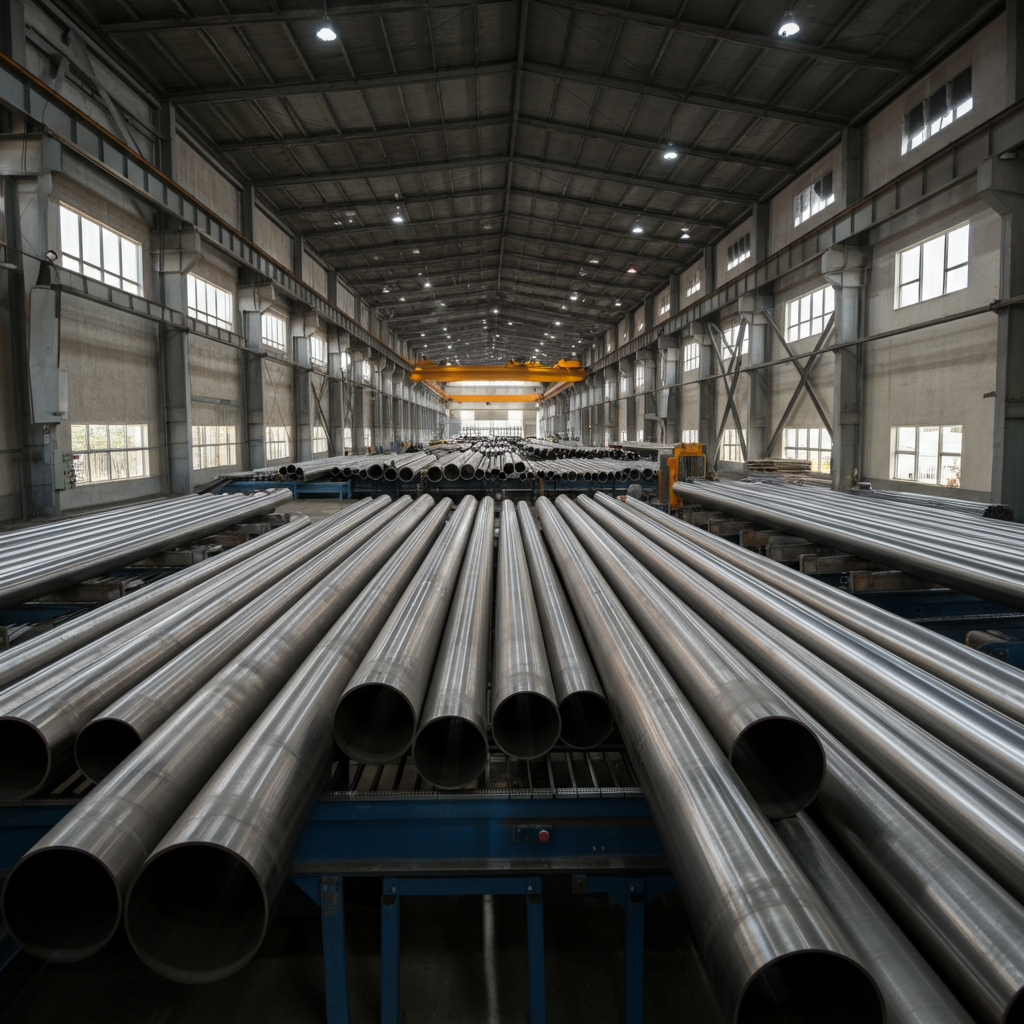

ERW Pipes

ERW Pipes

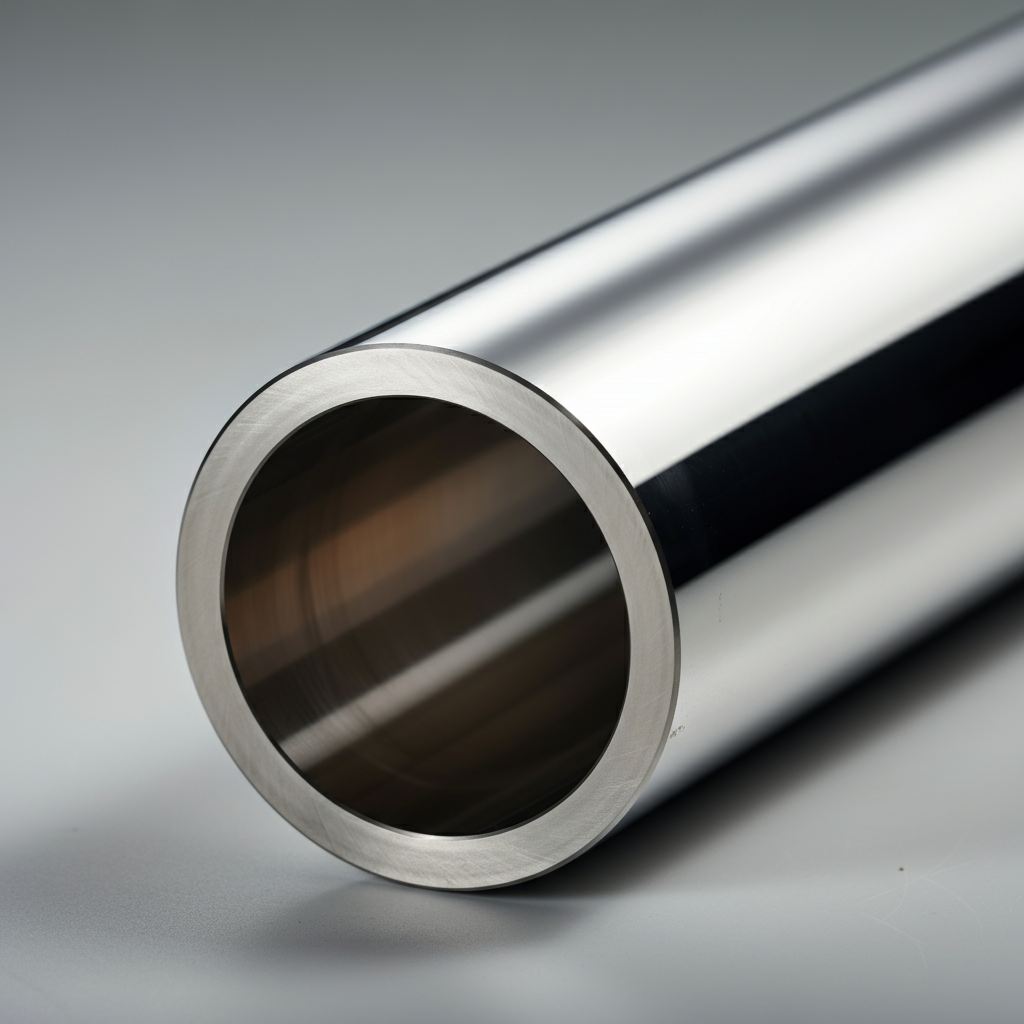

Polished Pipes

Polished Pipes

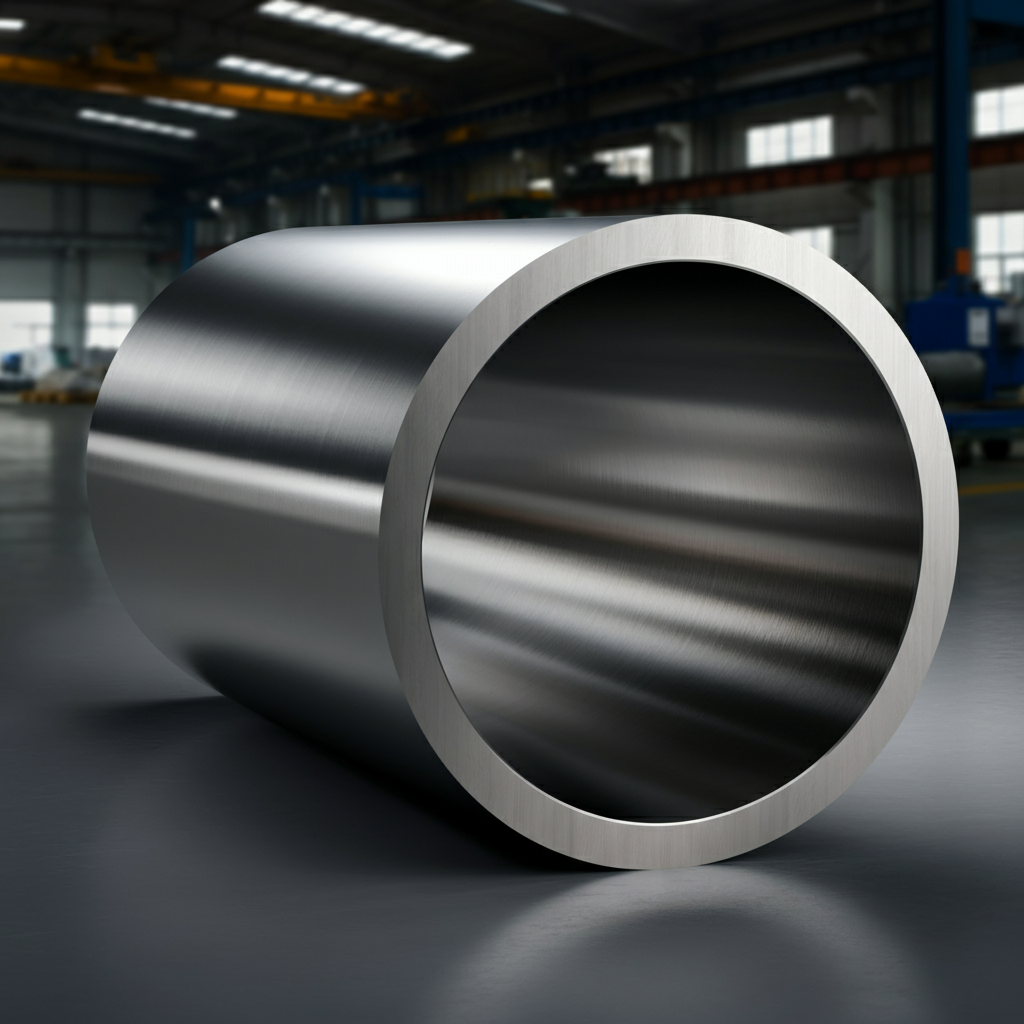

Cold Drawn Pipes

Cold Drawn Pipes

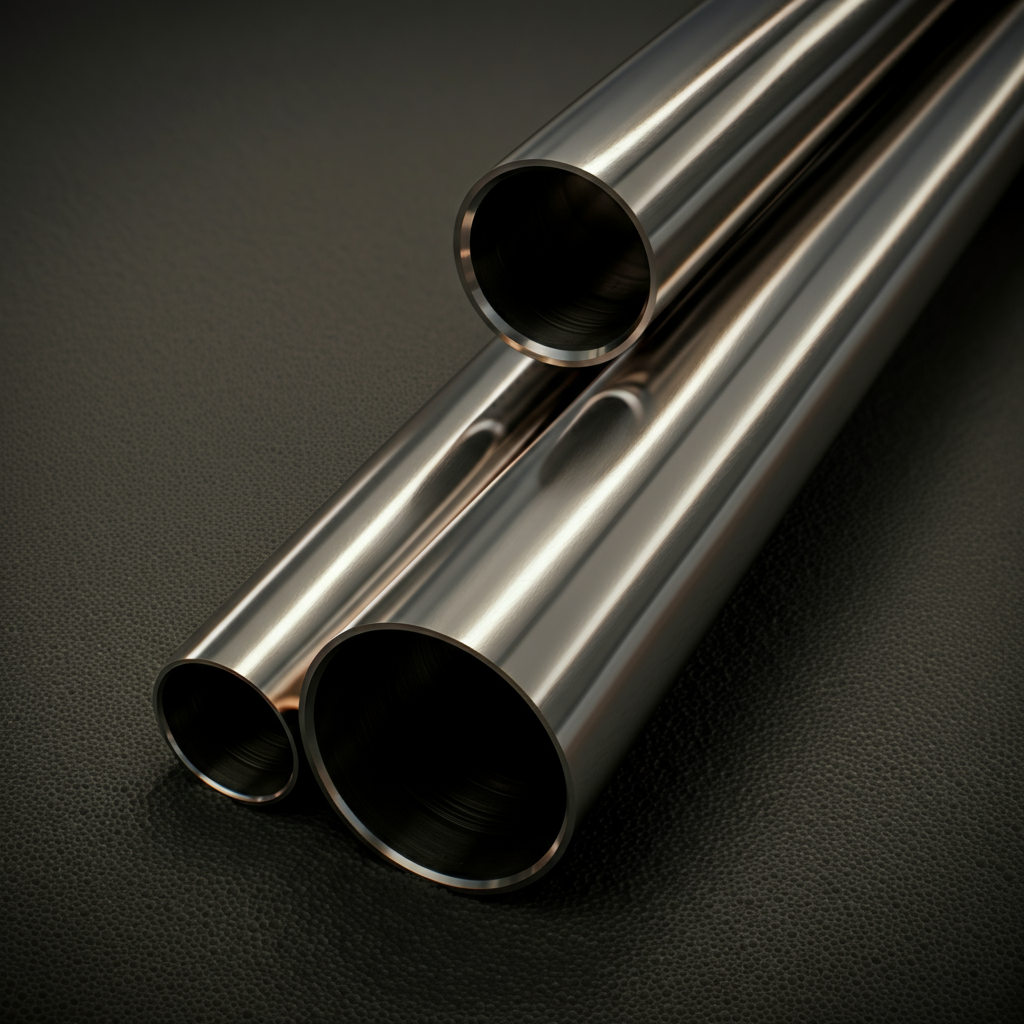

Customized Pipes

Customized Pipes

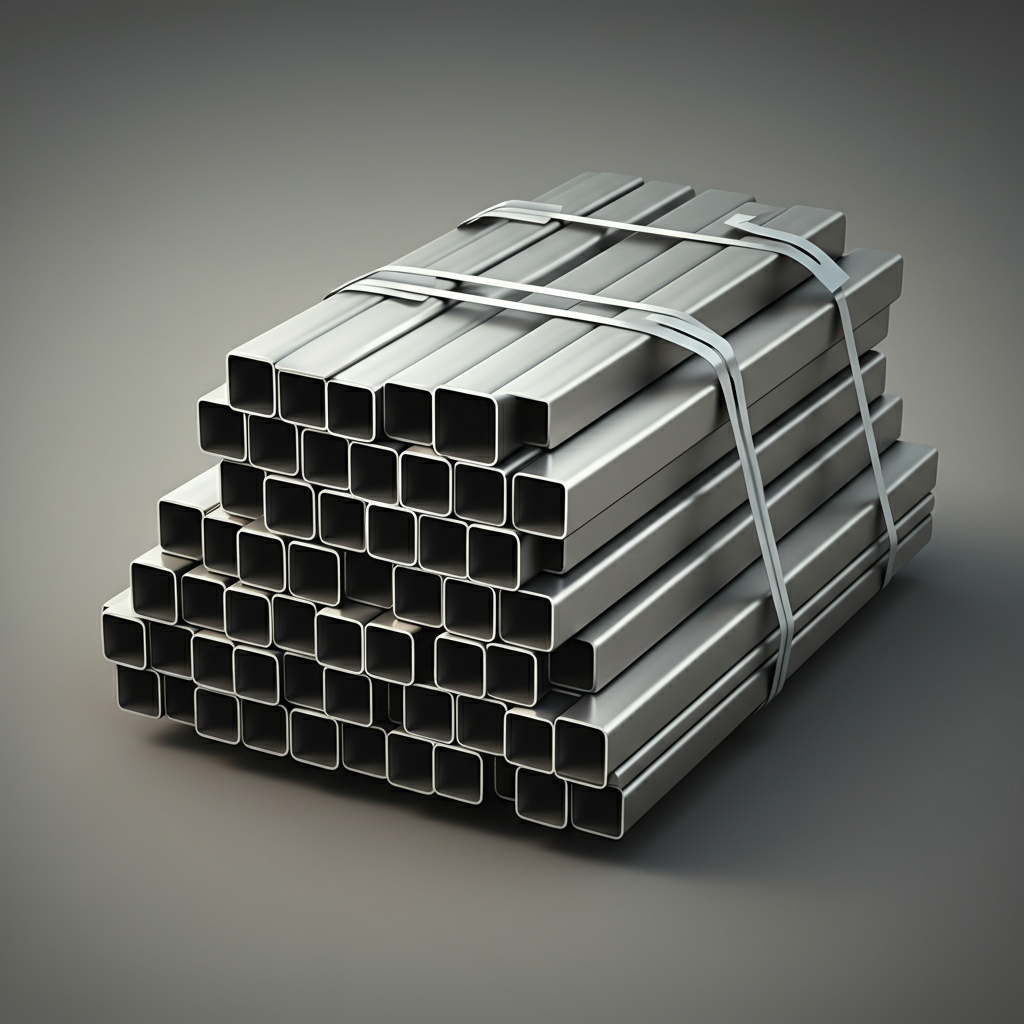

square-pipe

Square Pipes

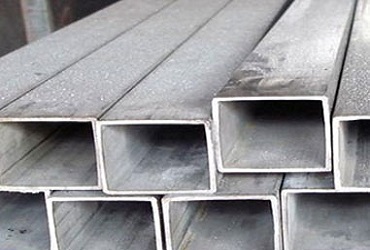

rectangular-pipe

Rectangular Pipes

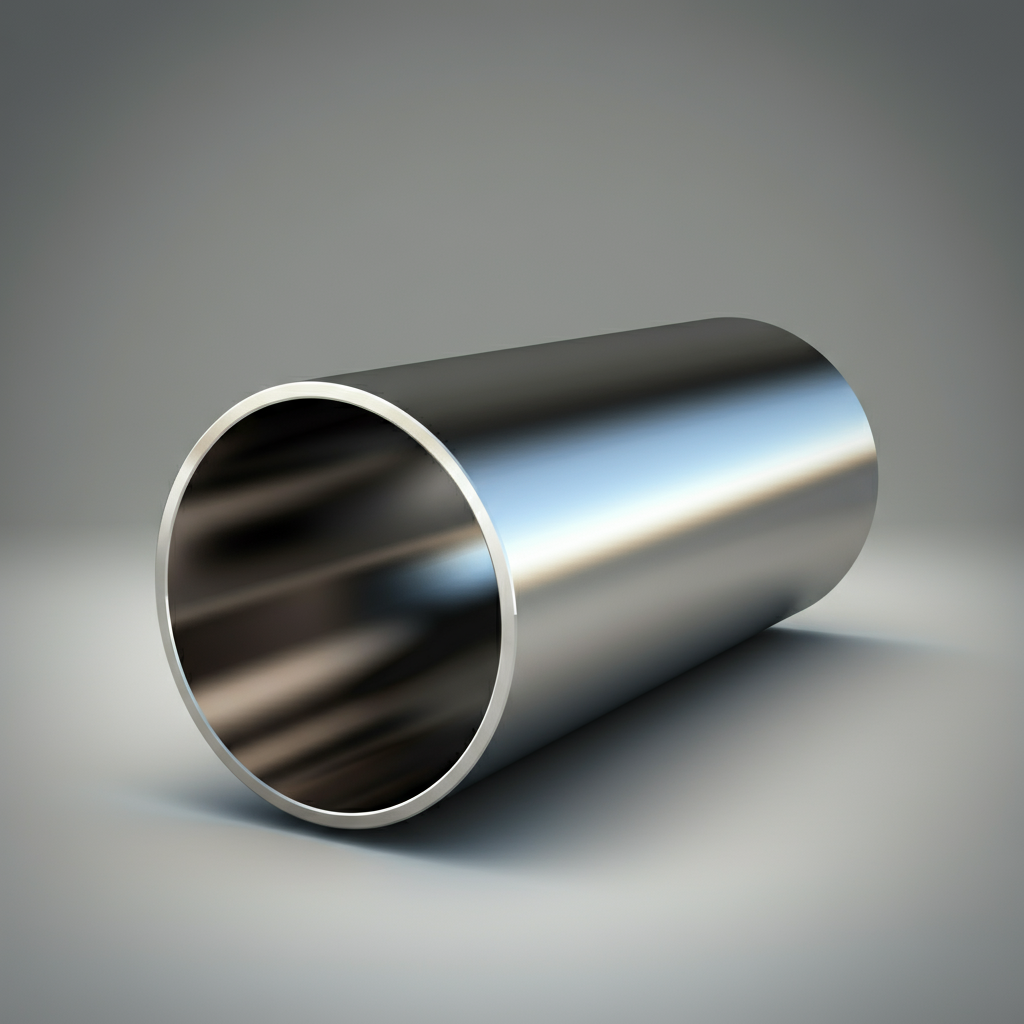

Hollow Pipes

Hollow Pipes

Stainless Steel Rectangular Pipe Chemical Composition

Check 316 Stainless Steel Rectangular Tubing and Rectangular Hollow Section, check corner radius, din standard and gauge chart of 2x4, 2x4 SS Rectangle Pipe
Grade Chromium Nickel Carbon Magnesium Molybdenum Silicon Phosphorus sulfur
304 18 To 20 8 To 11 0.08 Maximum 2 -. 1 0.045 Maximum .030 Maximum
316L 16 To 18 10 To 14 0.03 Maximum 2 2 To 3 1 0.045 Maximum .030 Maximum
317L 18 To 20 11 To 15 .035 Maximum 2 3 To 4 1 0.045 Maximum .030 Maximum



Mechanical Properties of SS Rectangular Pipe

Material Temperure Tensile Strength Yield Strength Elongation
Minimum Ksi Ksi
TP304L 1900 70 25 35
TP304 1900 75 30 35
TP316 1900 75 30 35
TP316L 1900 70 25 35
Super Duplex 2507   800 To 1,000 550 25



Weight Chart of SS Rectangle Pipe

Seamless and ERW 304 Stainless Steel Rectangular Tube and SS Rectangular Tubing for sale in Mumbai, buy Jindal SS Rectangular Box Section at dealer price in Mumbai
Nominal Pipe Sizes Outside Diameter Wall Thickness   Weight Weight
Inch MM Inch MM Schedule kg/Meter Lbs/feet
1/2 0.840 21 0.109 2.769 40 STD 1.268 0.851
      0.147 3.734 80 STD 1.621 1.088
3/4 1.050 27 0.113 2.870 40 STD 1.684 1.131
      0.154 3.912 80 STD 2.195 1.474
1 1.315 33 0.133 3.378 40 STD 2.501 1.679
      0.179 4.547 80 STD 3.325 2.172
1 1/4 1.660 42 0.140 3.556 40 STD 3.385 2.273
      0.191 4.851 80 STD 4.464 2.997
1 1/2 1.900 48 0.145 3.683 40 STD 4.048 2.718
      0.200 5.080 80 STD 5.409 3.361
2 2.375 60 0.154 3.912 40 STD 5.441 3.653
      0.218 5.537 80 STD 7.480 5.022
2 1/2 2.875 73 0.203 5.516 40 STD 8.629 5.793
      0.276 7.010 80 STD 11.411 7.661
3 3.500 89 0.216 5.486 40 STD 11.284 7.576
      0.300 7.620 80 STD 15.272 10.253
4 4.500 114 0.237 6.020   16.073 10.790
      0.337 8.560   22.318 14.983
6 6.625 168 0.188 4.775   19.252 12.924
      0.203 5.516   20.739 13.923
      0.219 5.563   22.318 14.983
      0.250 6.350   25.354 17.021
      0.280 7.112 40 STD 58.263 18.974
      0.312 7.925   31.334 21.036
      0.375 9.525   37.285 25.031
      0.432 10.973 80 XHY 42.561 28.573
      0.500 12.700   48.719 32.708
8 8.625 219 0.188 4.775   25.233 16.940
      0.203 5.156   27.198 18.259
      0.219 5.563   29.286 19.661
      0.250 6.350 20 33.308 22.361
      0.277 7.036 30 36.786 24.696
      0.322 8.179 40 42.352 28.554
      0.375 9.525   49.216 33.041
      0.406 10.312 60 53.085 35.638
      0.500 12.700 80 XHY 64.627 43.388
10 10.750 273 0.188 4.775   31.588 21.207
      0.219 5.563   36.689 24.631
      0.250 6.350 20 41.759 28.035
      0.307 7.798 30 51.002 34.240
      0.344 8.738   56.946 38.231
      0.365 9.271 40 STD 63.301 40.483
      0.438 11.125   71.852 48.238
      0.500 12.700 60 XHY 81.530 54.735
      0.594 15.088 80 95.969 64.429
12 12.750 324 0.188 4.775   37.570 25.222
      0.219 5.563   43.657 29.309
      0.250 6.350   49.713 33.375
      0.281 7.137   55.739 37.420
      0.312 7.925   61.735 41.445
      0.375 9.525   73.824 49.562
      0.406 10.312   79.727 53.525
      0.500 12.700   97.438 65.415
      0.562 14.275   108.966 73.154
14 14.000 356 0.188 4.775   41.308 27.732
      0.219 5.563   48.012 32.233
      0.250 6.350 20 54.685 36.713
      0.281 7.137   61.327 41.172
      0.312 7.925   67.939 45.611
      0.375 9.525 STD 81.281 54.568
      0.438 11.125 40 94.498 63.441
      0.500 12.700 XHY 107.381 72.090
      0.625 15.875   132.983 89.278
16” 16.000 406 0.188 4.775   47.290 21.748
      0.219 5.563   54.980 36.910
      0.250 6.350 10 62.639 42.053
      0.281 7.137   70.268 47.174
      0.312 7.925 20 77.866 52.275
      0.344 8.738   85.677 57.519
      0.375 9.525

30

STD

 93.213 62.578
      0.438 11.125   108.433 72.797
      0.500 12.700

40

XHY

 123.289 82.770
18 18.000 457 0.219 5.563   61.948 41.588
      0.250 6.350   70.593 47.393
      0.281 7.137   79.208 53.176
      0.312 7.925 20 87.792 58.939
      0.375 9.525 STD 105.144 70.588
      0.438 11.125 30 122.369 82.152
      0.500 12.700 XHY 139.198 93.450
      0.562 14.275 40 155.904 104.666
      0.625 15.875   172.754 115.978
20 20.000 508 0.250 6.350   78.547 52.733
      0.282 7.163   88.458 59.386
      0.312 7.925   97.719 65.604
      0.375 9.525 20 STD 117.075 78.598
      0.438 11.125   136.305 91.508
      0.500 12.700 30 XHY 155.106 104.130
      0.594 15.088 40 183.378 123.110
      0.625 15.875   192.640 129.328
      0.688 17.475   211.368 141.901
24 24.000 610 0.250 6.350   94.456 63.413
      0.281 7.137   106.029 71.183
      0.312 7.925   117.573 18.932
      0.375 9.525 20 STD 140.938 64.618
      0.438 11.125   164.176 110.219
      0.500 12.700 XHY 186.923 125.490
      0.625 15.875   232.410 156.028
      0.688 17.475 40 255.148 171.293
      0.750 19.050   277.401 186.233
30 30.000 762 0.250 6.350   118.318 79.433
      0.281 7.137   132.851 89.189
      0.312 7.925 10 147.353 98.925
      0.375 9.525 STD 176.731 118.648
      0.438 11.125   205.983 138.286
      0.500 12.700 20 XHY 234.647 157.530
      0.625 15.875 30 292.066 196.078
      0.688 17.475   320.817 215.380
      0.750 19.050   348.988 234.293
36 36.000 914 0.250 6.350   142.180 95.453
      0.281 7.137   159.672 107.196
      0.312 7.925 10 177.133 118.918
      0.375 9.525 STD 215.525 142.678
      0.438 11.125   247.790 166.353
      0.500 12.700 20 XHY 282.372 198.570
      0.625 15.875   351.723 236.128


0.688

 17.475   386.487 259.467


0.750

 19.050   420.576 282.353
42 42.000 1067 0.312 7.925   206.914 138.911
      0.375 9.525 STD 248.319 166.708
      0.500 12.700 XHY 33.097 221.610
      0.750 19.050   492.163 330.413
48 48.000 1219 0.375 9.525 STD 284.112 190.738
      0.438 11.125   331.404 222.487
      0.500 12.700 XHY 377.822 253.650
      0.750 19.050   563.750 378.473
      0.875 22.225   655.969 440.383

316 Stainless Steel Rectangular Tubing Dimension Table

Nominal size in inches Outside diameter in inches Outside diameter in mm Wall thickness in inches Wall thickness in mm Weight [lbs/feet] Weight [kg/meter]
1/8 6 0.41 10.3 0.068 1.73 0.24 0.37
1/4 8 0.54 13.7 0.088 2.24 0.42 0.63
3/8 10 0.68 17.1 0.091 2.31 0.57 0.84
1/2 15 0.84 21.3 0.109 2.77 0.85 1.27
3/4 20 1.05 26.7 0.113 2.87 1.13 1.69
1 25 1.32 33.4 0.133 3.38 1.68 2.5
1 1/4 32 1.66 42.2 0.14 3.56 2.27 3.39
1 1/2 40 1.9 48.3 0.145 3.68 2.72 4.05
2 50 2.375 60.3 0.154 3.91 3.65 5.44
2 1/2 65 2.875 73 0.203 5.16 5.79 8.63
3 80 3.5 88.9 0.216 5.49 7.58 11.29
3 1/2 90 4 101.6 0.226 5.74 9.11 13.57
4 100 4.5 114.3 0.237 6.02 10.79 16.07
5 125 5.563 141.3 0.258 6.55 14.62 21.77
6 150 6.625 168.3 0.28 7.11 18.97 28.26
8 200 8.625 219.1 0.322 8.18 28.55 42.55
10 250 10.75 273 0.365 9.27 40.48 60.31
12 300 12.75 323.8 0.406 10.31 53.52 79.73
14 350 14 355.6 0.437 11.13 54.57 94.55
16 400 16 406.4 0.5 12.7 82.77 123.3
18 450 18 457 0.562 14.27 104.67 155.8
20 500 20 508 0.594 15.09 123.11 183.42
24 600 24 610 0.688 17.48 171.29 255.41
32 800 32 813 0.688 17.48 230.08 342.91



Stainless Steel Rectangular Box Section Pressure rating

Pipe Size in inches Schedule Outside Diameter in Inch Wall Thickness in Inch Temperature
100 200 300 400 500 600 650 700 750
Allowable Stress
16700 16700 16700 15500 14400 13500 13200 12900 12600
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783 1743 1703 1664
80 1.315 0.179 3061 3061 3061 2841 2640 2475 2420 2365 2310
160 1.315 0.250 4493 4493 4493 4170 3874 3632 3552 3471 3390
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317 1287 1258 1229
80 1.900 0.200 2303 2303 2303 2138 1986 1862 1821 1779 1738
160 1.900 0.281 3362 3362 3362 3120 2899 2717 2657 2597 2536
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108 1083 1059 1034
80 2.375 0.218 1985 1985 1985 1843 1712 1605 1569 1534 1498
160 2.375 0.344 3283 3283 3283 3047 2831 2654 2595 2536 2477
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052 1028 1005 982
80 3.500 0.300 1844 1844 1844 1712 1590 1491 1458 1425 1391
160 3.500 0.438 2787 2787 2787 2587 2403 2253 2203 2153 2103
4" 40 4.500 0.237 1102 1102 1102 1023 950 891 871 851 831
80 4.500 0.337 1596 1596 1596 1482 1377 1291 1262 1233 1204
160 4.500 0.531 2611 2611 2611 2424 2552 2111 2064 2017 1970
5" 40 5.563 0.258 965 965 965 896 832 780 763 746 728
80 5.563 0.375 1428 1428 1428 1325 1231 1154 1129 1103 1077
160 5.563 0.625 2474 2474 2474 2296 2133 2000 1955 1911 1866
6" 40 6.625 0.280 877 877 877 814 756 709 693 677 661
80 6.625 0.432 1379 1379 1379 1280 1189 1115 1090 1065 1040
160 6.625 0.719 2382 2382 2382 2211 2054 1925 1883 1840 1797
8" 40 8.625 0.322 771 771 771 716 665 623 610 596 582
80 8.625 0.500 1218 1218 1218 1131 1050 985 963 941 919
160 8.625 0.906 2298 2298 2298 2133 1982 1858 1817 1775 1734
10" 40 10.750 0.365 699 699 699 649 603 565 553 540 528
80 10.750 0.594 1159 1159 1159 1075 999 937 916 895 874
160 10.750 1.125 2289 2289 2289 2124 1974 1850 1809 1768 1727
