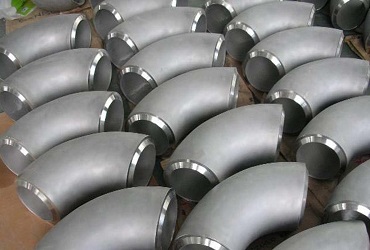

Buttweld Fittings
Shahil
Jain
Marketing Head
-
Phone
-
Email
Specification
| Specifications | ASTM A815 / ASME SA815 |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 | Standard for – Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 | Buttwelding Ends. |
| ASME B16.28 | Standard for – Butt-Welded Short Radius Elbows & Returns Bends |
| MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
|
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Seamless Butt Weld Fitting Size | 1/2" - 10" |
| Welded Butt Weld Fittings Size | 1/2" - 48" |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
|
Test Certificates
|
EN 10204/3.1B, NACE MR0103, NACE MR0175 |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc |
Application
Aerospace
Cleaning Factories
Food Processing
Oil and Gas
Pharmaceutical
Power Plant
Ship Building
Water Systems
Refinery
